Mastering the Art of Secure Door Hinge Installation

When it comes to maintaining or upgrading your property, one detail that often gets overlooked is the humble door hinge. Yet, a well-fitted door hinge is crucial for the smooth operation and security of your doors. I’ve learned that mastering the art of secure door hinge installation not only improves the functionality of your doors but also enhances the overall safety and aesthetic of your home or building. In this post, I’ll walk you through everything you need to know to get it right the first time.

Why Secure Door Hinge Installation Matters

A door hinge might seem like a small component, but it plays a vital role in the door’s performance. Poorly installed hinges can cause doors to sag, stick, or even fall off their frames. This can lead to costly repairs and compromise security. Secure door hinge installation ensures that your doors open and close smoothly, stay aligned, and provide the necessary support for years to come.

For example, if you have an external door, a weak hinge installation can make it easier for intruders to force the door open. Internally, a misaligned door can cause damage to the frame or floor over time. By focusing on proper hinge fitting, you protect your investment and maintain the integrity of your property.

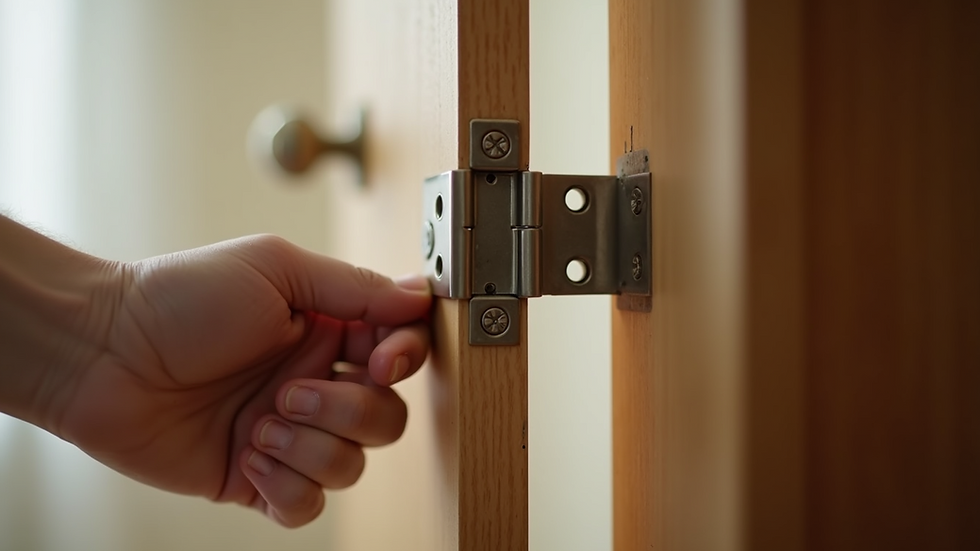

Secure door hinge installation on wooden door frame

Steps to Achieve Secure Door Hinge Installation

Getting your door hinges fitted securely involves a few key steps. Here’s a straightforward guide that I follow to ensure the job is done right:

1. Choose the Right Hinges

   Not all hinges are created equal. Select hinges that match the door’s weight and size. For heavy doors, opt for ball-bearing hinges which offer better durability.




2. Mark the Hinge Positions Accurately

   Measure and mark the exact spots on both the door and the frame where the hinges will sit. Typically, hinges are placed 7 inches from the top and 11 inches from the bottom of the door, with a third hinge in the middle for heavier doors.




3. Mortise the Door and Frame

   Use a chisel or router to create a recess (mortise) for the hinge leaf to sit flush with the surface. This step is crucial for a neat fit and smooth operation.




4. Pre-Drill Screw Holes

   To avoid splitting the wood, pre-drill holes for the screws. This also makes it easier to drive the screws in straight.




5. Attach Hinges Securely

   Screw the hinges firmly into place on both the door and the frame. Make sure the screws are long enough to hold the hinge securely.




6. Test the Door Movement

   Hang the door and check for smooth opening and closing. Adjust the screws if necessary to eliminate any sagging or misalignment.




By following these steps, you can be confident that your door hinges will hold strong and function well.

What is the Correct Way to Fit a Door Hinge?

Fitting a door hinge correctly is about precision and patience. Here’s what I’ve found to be the best approach:

• Start with the Door: It’s easier to mortise the door first before attaching the hinges. This allows you to work on a stable surface.




• Use a Template: If you’re fitting multiple doors, create a template for hinge placement. This ensures consistency and saves time.




• Check Alignment Frequently: After attaching the hinges to the door, hold it in the frame and check the alignment. The door should sit evenly in the frame with equal gaps on all sides.




• Adjust as Needed: If the door doesn’t fit perfectly, you can adjust the hinge position slightly by loosening screws and repositioning. Sometimes, adding thin cardboard shims behind the hinge leaf on the frame can help correct minor misalignments.




• Secure Screws Properly: Use screws that are at least 3 inches long for external doors to ensure they penetrate deep into the frame for maximum strength.




Remember, the goal is to have the door swing freely without rubbing against the frame or floor. Taking your time during this process pays off in the long run.

Mortising door hinge recess for secure fitting

Tools and Materials You’ll Need

Before you start, gather the right tools and materials. Having everything on hand makes the process smoother and more efficient. Here’s what I recommend:

• Hinges (choose based on door type and weight)

• Screwdriver or drill with screwdriver bits

• Chisel and hammer (for mortising)

• Measuring tape and pencil

• Spirit level (to check door alignment)

• Wood screws (preferably brass or stainless steel for durability)

• Router (optional, for faster mortising)

• Cardboard shims (for minor adjustments)

• Safety goggles and gloves (for protection)




Using quality tools and materials not only makes the job easier but also ensures a professional finish.

Tips for Long-Lasting Door Hinge Performance

Once your hinges are installed, maintaining them is key to longevity. Here are some tips I always follow:

• Lubricate Hinges Regularly: Use a silicone spray or light oil to keep hinges moving smoothly and prevent squeaks.




• Tighten Screws Periodically: Over time, screws can loosen. Check and tighten them every few months.




• Replace Worn Hinges Promptly: If you notice rust or damage, replace the hinge before it affects the door’s function.




• Use Correct Screws: Avoid using short or thin screws that can strip or pull out easily.




• Avoid Overloading Doors: Heavy decorations or attachments on doors can strain hinges. Keep door weight within recommended limits.




By following these simple maintenance steps, you can extend the life of your door hinges and keep your doors operating perfectly.

Why I Recommend Professional Help for Complex Installations

While fitting a door hinge can be a DIY project, some situations call for professional expertise. For example:

• Heavy or Fire-Rated Doors: These require specific hinges and precise fitting to meet safety standards.




• Uneven or Damaged Frames: Professionals can adjust or repair frames to ensure proper door alignment.




• Multiple Door Installations: For large projects, hiring experts saves time and guarantees consistency.




If you’re unsure about any part of the process, it’s worth consulting a trusted handyman or maintenance service. They bring experience and the right tools to handle tricky installations safely and efficiently.

For those looking to learn more or get professional assistance, I recommend checking out door hinge fitting services that specialise in secure and reliable installations.

Mastering the art of secure door hinge installation is a valuable skill that enhances your property’s safety and functionality. With the right approach, tools, and a bit of patience, you can achieve professional results that last. Whether you’re upgrading a single door or managing multiple properties, paying attention to hinge fitting details makes all the difference.
